Backup & Restore process of CISCO Router



Backup & Restore process of CISCO Router

Video link:

At first, take a look at Backup process:





Router>en

Router#conf t

Router(config)#

Router(config)#int g0/0

Router(config-if)#

Router(config-if)#ip add 1.1.1.1 255.0.0.0

Router(config-if)#no sh

Router(config-if)#

Router(config-if)#ex

Router(config)#ex

Router#ping 1.1.1.2



Put the IP address of the TFTP-Server





Backup configuration on the Router0:

Router(config)#

Router(config)#Hostname Dhaka

Dhaka(config)#int lo 1

Dhaka(config-if)#ip add 5.5.5.5 255.0.0.0

Dhaka(config-if)#ex

Dhaka(config)#int lo 3

Dhaka(config-if)#ip add 6.6.6.6 255.0.0.0

Dhaka(config-if)#ex

Dhaka(config)#exit

Dhaka#copy running-config startup-config

Destination filename [startup-config]?

Building configuration...

[OK

Backup Configuration for running-config:



Dhaka#copy tftp: running-config

Address or name of remote host []? 1.1.1.2

Source filename []? Dhaka-confg

Destination filename [running-config]?



Accessing tftp://1.1.1.2/Dhaka-confg....

Loading Dhaka-confg from 1.1.1.2: !

[OK - 747 bytes]









Router ISO file copy configuration:

Dhaka#copy flash: tftp:

Source filename []? c2900-universalk9-mz.SPA.151-4.M4.bin

Address or name of remote host []? 1.1.1.2

Destination filename [c2900-universalk9-mz.SPA.151-4.M4.bin]? Dhaka-ISO.bin



Writing c2900-universalk9-mz.SPA.151-4.M4.bin...!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

[OK - 33591768 bytes]

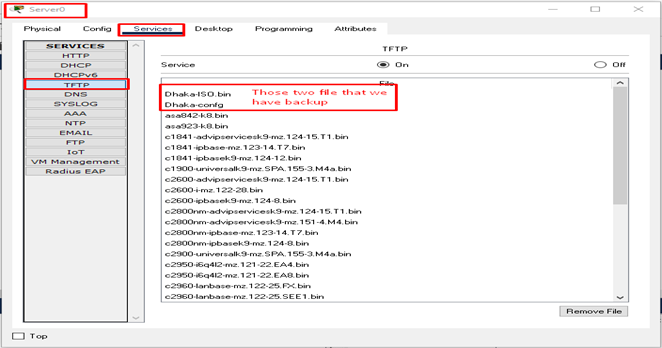

We have done our configuration let’s take a look on the TFTP-server:





Now, take a look at Restore process:



New Router Configuration:



Router>en

Router#conf t

Router(config)#

Router(config)#int g0/0

Router(config-if)#

Router(config-if)#ip add 1.1.1.5 255.0.0.0

Router(config-if)#no sh

Router(config-if)#

Router(config-if)#ex

Router(config)#ex







Restore:





Dhaka#copy startup-config tftp:

Address or name of remote host []? 1.1.1.2

Destination filename [Dhaka-confg]?



Writing startup-config....!!

[OK - 851 bytes]

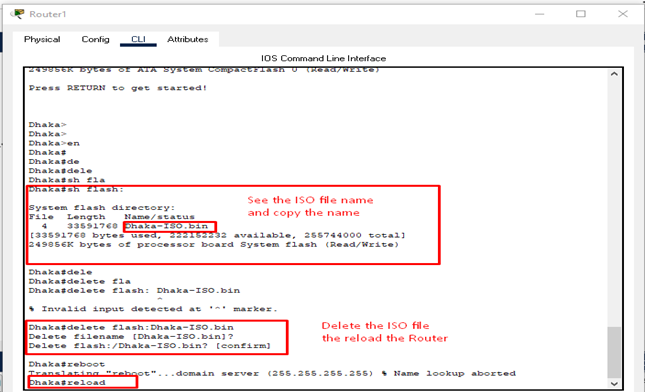

Now to Restore the ISO file at first delete the Running ISO file from the router:

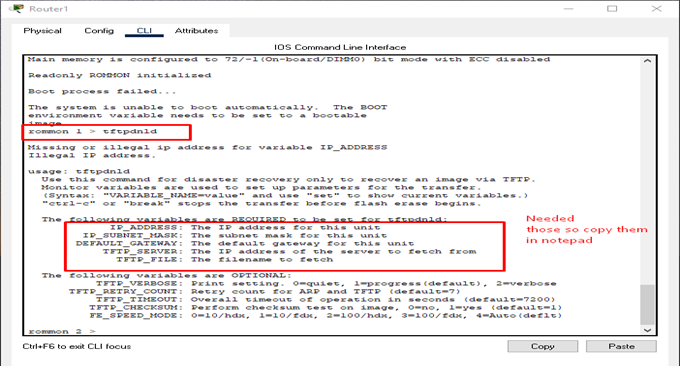

 Now Restore Process Start from here:

Notepad:



Now copy and paste from the Notepad:





Just reset the router:





Now router is ready to go as required
